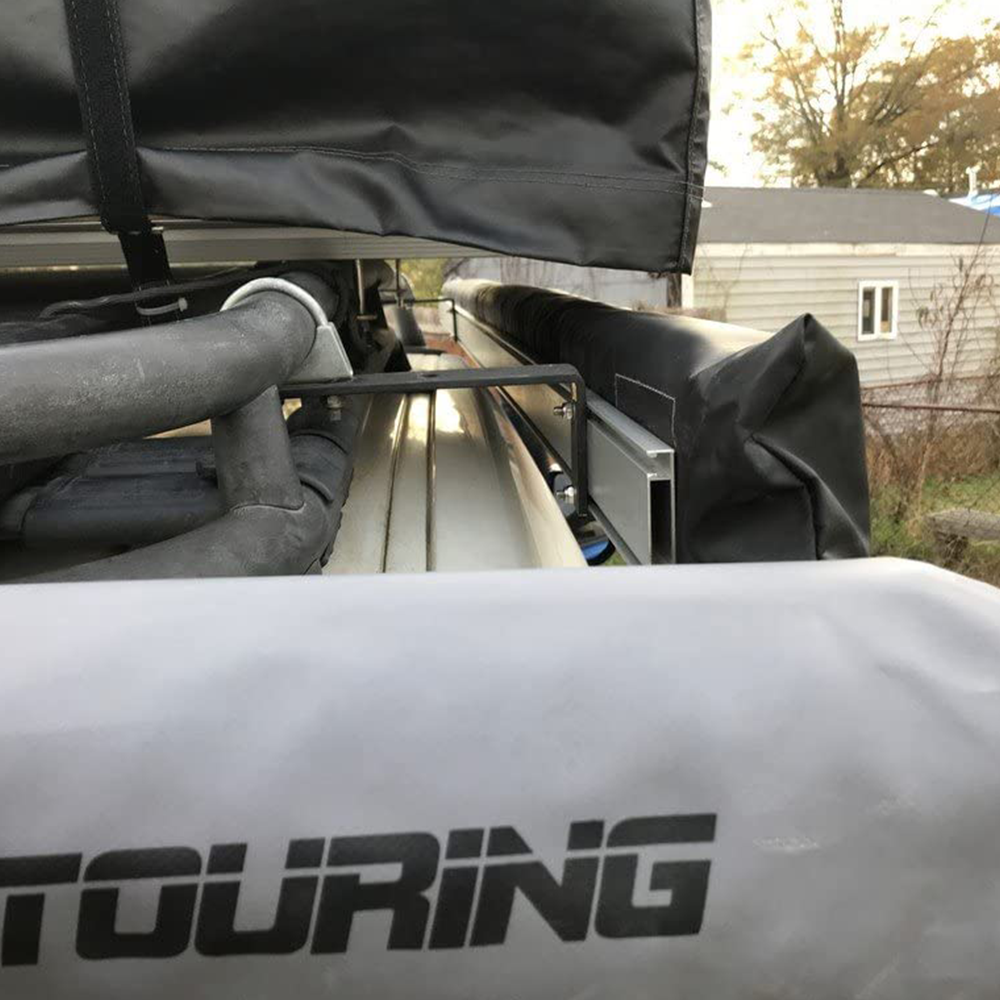

OS850 Universal Awning Bracket for Most Roof Racks
OS850 Universal Awning Bracket for Most Roof Racks
Regular price
$16.94 USD
Regular price
Sale price
$16.94 USD
Unit price
/
per
Couldn't load pickup availability
The OS850 Awning bracket is designed with welded gussets to provide additional strength when awnings are mounted to roof bars on vehicles used off road or under extreme conditions.
Zinc plated and powder coated for corrosion resistance and designed to mount either upright or inverted, the awning bracket is 50 mm wide allowing it to fit over both Thule SquareBar & Rhino Heavy Duty bars in the inverted position, or upright using T-bolts or channel nuts on Thule ProfessionalBar, WingBar & AeroBar or Rhino Heavy Duty.
Pre-drilled to accept 8mm bolts, at least 2, but preferably 3 bolts should be used to mount to the roof bar for maximum strength. The outer bolt hole between the gussets must always be used for the gusset to be effective. Three slotted 6mm holes are provided to mount the awning.
The awning bracket is not supplied with hardware. Due to different bar designs, it is recommended to use T-bolts and channel nuts supplied by the roof bar manufacturer.
The current awning bracket has recently been upgraded from 3mm to 4mm construction however it is considered lighter duty and designated for highway use.
Works on most roof racks, universal mount, round roof racks are a little harder to install
Listing is for one bracket, ARB suggest to use 2 or 3 brackets to secure the Awning
Three slotted 6mm holes are provided to mount the awning, the OS850 awning bracket is not supplied with hardware
ARB suggest to use a Pair (2) or Three (3) units securely mount the awning on the roof rack.
On Bigger Awnings like 2500x2500, or Smaller Awnings with Awning Room, is recommended to use Three (3) Awning Bracket Mounts
Zinc plated and powder coated for corrosion resistance and designed to mount either upright or inverted, the awning bracket is 50 mm wide allowing it to fit over both Thule SquareBar & Rhino Heavy Duty bars in the inverted position, or upright using T-bolts or channel nuts on Thule ProfessionalBar, WingBar & AeroBar or Rhino Heavy Duty.
Pre-drilled to accept 8mm bolts, at least 2, but preferably 3 bolts should be used to mount to the roof bar for maximum strength. The outer bolt hole between the gussets must always be used for the gusset to be effective. Three slotted 6mm holes are provided to mount the awning.
The awning bracket is not supplied with hardware. Due to different bar designs, it is recommended to use T-bolts and channel nuts supplied by the roof bar manufacturer.
The current awning bracket has recently been upgraded from 3mm to 4mm construction however it is considered lighter duty and designated for highway use.
Works on most roof racks, universal mount, round roof racks are a little harder to install
Listing is for one bracket, ARB suggest to use 2 or 3 brackets to secure the Awning
Three slotted 6mm holes are provided to mount the awning, the OS850 awning bracket is not supplied with hardware
ARB suggest to use a Pair (2) or Three (3) units securely mount the awning on the roof rack.
On Bigger Awnings like 2500x2500, or Smaller Awnings with Awning Room, is recommended to use Three (3) Awning Bracket Mounts
