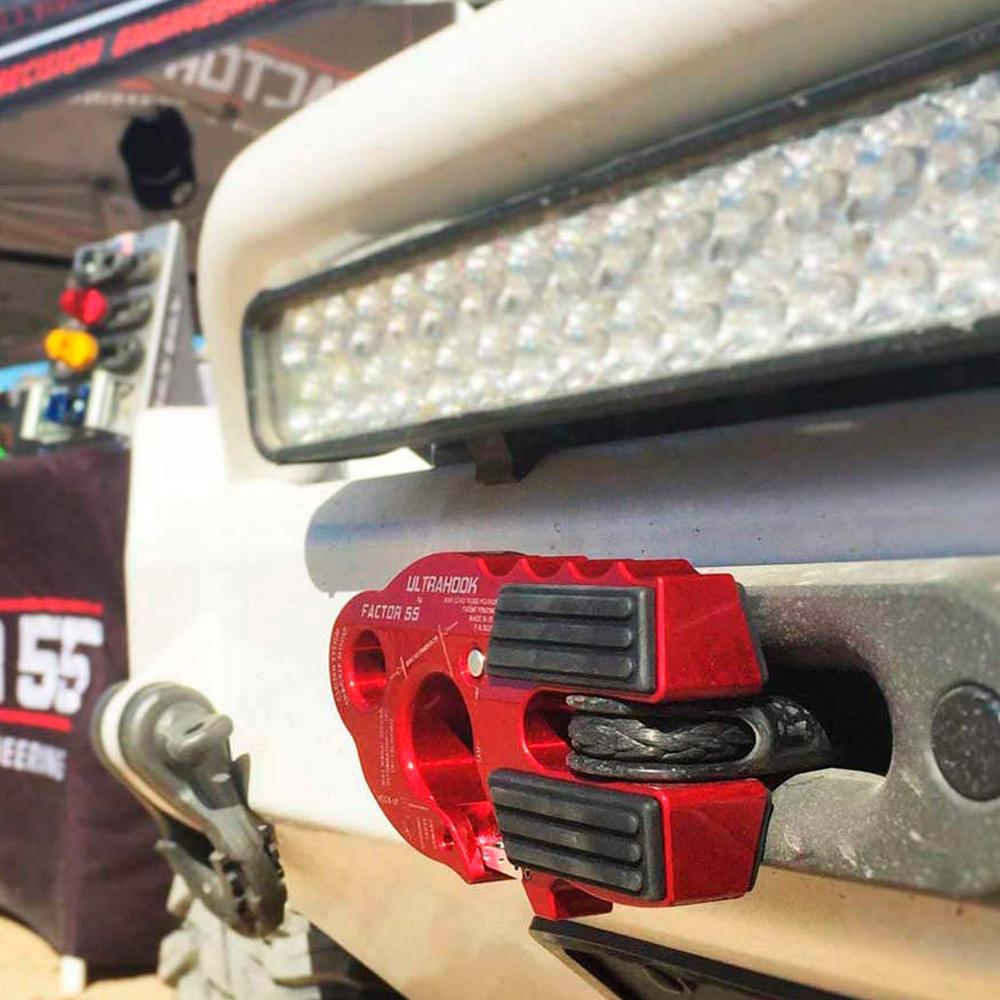

Factor 55 UltraHook Winch Shackle Aluminum in Red 00250-01

[LIGHTWEIGHT]

• Precision CNC machined 7000 series Military Grade Aluminum.

[FIT]

• For rope and cable diameters up to 3/8", the Shackle pin mounting hole accepts shackle pins (.875" diameter). 5/8" diameter 6AI-4V grade V titanium double shear pin.

[ULTIMATE STRENGTH]

• Hook Throat Opening is 31,000 pounds, Shackle Pin Mount is 48,000 pounds.

[SAFETY]

• Double locking safety clasp lock the safety clasp with the included clevis pin. Latch lock clevis pin stored conveniently in hook body. Integrated EPDM rubber pads for fairlead surface protection MAX RATED LOAD: 16,000 pounds.

[TWO METHODS OF USE]

• conventional hook opening, or shackle mount. Designed for both steel cables and synthetic winch ropes. No rope splicing required -double shear pin design accepts rope/cable eyes.

ABOUT THIS PRODUCT

Forged from steel, the rugged Factor 55 ultra winch hook not only holds strong, but it also stands up to wear and abrasion thanks to its 7000 series Military Grade Aluminum. Before we release any products to the public, we also perform a destructive test on each design with the assistance of a test facility equipped with test measurement and data recording equipment. From 6000 and 7000 series aluminum to 6AL-4V titanium double shear pins, our Factor 55 ultra winch hook offers the very best designs made from the very best materials. We want to make sure we are sourcing the highest quality, best value products for our customers.

The first winch hook can be stored against your fairlead protecting either your hawse or roller style fairlead from a metal-to-metal connection.

SPECIFICATIONS

• Product Dimensions (L x W x H): 7.5 × 5 × 3 inches.
• Shackle pin mounting hole accepts screw pins from common 5/8″ shackles (3/4″ diameter pins).
• For rope and cable diameters up to 5/16″.
• Available in Military Specification Hard Anodizing (MIL-A-8625 F Type III) Gray.
• 7/16″ diameter 6AI-4V grade V titanium double shear pin.
• Max Rated Load: 10,000 pounds.
• Breaking Strength: 21,000 pounds.
